Introduction
API line pipe specifications are fundamental for ensuring quality, safety, and efficiency in pipeline systems across various industries. These API-established standards guide the manufacturing and testing of seamless and welded steel pipes used in oil, gas, and water transportation. It’s crucial for suppliers, engineers, and project managers to understand these specifications to meet stringent industry requirements.
This guide delves into the complexities of API 5L standards, the most widely used line pipe specification in the oil and gas industry. It covers its applications, specifications, seamless and welded pipe types, and how adherence helps suppliers ensure pipes withstand harsh conditions, aiding your informed decisions.
What Are API Line Pipe Specifications?
API line pipe specifications refer to the standards set by API 5L, which outline the technical requirements for manufacturing, testing, and delivering line pipes. These specifications ensure that pipes meet the mechanical, chemical, and dimensional properties necessary for safe and reliable performance in pipeline systems. The API 5L standard covers two product specification levels (PSL1 and PSL2), each with distinct requirements for quality control, testing, and material properties.
PSL1 is the basic level, suitable for standard applications, while PSL2 imposes stricter requirements for chemical composition, notch toughness, and non-destructive testing, making it ideal for more demanding environments. API line pipe specifications also define grades such as GR.A, GR.B, X42, X46, X52, X56, X60, X65, X70, and X80, which indicate the pipe’s yield strength and suitability for specific pressure and temperature conditions.
Types of API Line Pipes
API line pipe specifications encompass various pipe types tailored to different applications. The primary varieties include:
- Seamless Line Pipes: These pipes, manufactured without welds, offer superior strength and are ideal for high-pressure applications in oil and gas pipelines.
- Welded Line Pipes: These include Electric Resistance Welded (ERW) and Submerged Arc Welded (SAW) pipes, suitable for large-diameter pipelines with moderate pressure requirements.
- Carbon Steel Line Pipes: Known for their durability and cost-effectiveness, these pipes are widely used in water and gas transportation.
- API Line Pipes: Specifically designed to meet API 5L standards, these pipes cater to the petroleum and natural gas industries.
Each type adheres to API line pipe specifications, ensuring consistent quality and performance across diverse applications.
Applications of API Line Pipes
API line pipe specifications enable the use of these pipes in a wide range of applications, primarily in the oil and gas sector. Key uses include:
- Oil and Gas Pipelines: API 5L pipes transport crude oil, natural gas, and refined products over long distances, ensuring safe and efficient delivery.
- Water Pipelines: Carbon steel line pipes meeting API standards are used in municipal and industrial water supply systems.
- Natural Gas Distribution: These pipes facilitate the safe transport of natural gas to residential, commercial, and industrial consumers.
- Offshore and Onshore Projects: API line pipes are used in both onshore and offshore pipeline systems, designed to withstand extreme environmental conditions.
By adhering to API line pipe specifications, these pipes ensure reliability and safety in critical infrastructure projects.
Key Specifications of API 5L Line Pipes
API line pipe specifications outline precise dimensional and technical requirements to ensure compatibility with various pipeline systems. Below is a detailed table summarizing the key specifications of API 5L line pipes:
| Parameter | Details |
|---|---|
| Outer Diameter | 2″ to 26″ (50.8 mm to 660 mm) |
| Wall Thickness | SCH 10, SCH 20, SCH 40, SCH 80, SCH 100, SCH 120, SCH 160, SCH STD, SCH XS, SCH XXS |
| Length | Fixed Length (5.8 m, 6 m, 11.8 m, 12 m), Single Random Length (SRL), Double Random Length (DRL) |
| Grades | GR.A, GR.B, X42, X46, X52, X56, X60, X65, X70, X80 |
| Product Specification Levels | PSL1, PSL2 |
| End Types | Plain End (Square Cut, Saw Cut, Torch Cut), Beveled End, Threaded End |
| Surface Treatment | Bare, Lightly Oiled, Black/Red/Yellow Paint, Zinc/Anti-Corrosion Coating |
| Packaging | Bundled or Loose, Plastic Caps on Both Ends, Wrapped in Waterproof Paper |
This table provides a comprehensive overview of API line pipe specifications, helping stakeholders select pipes that align with project requirements.
Manufacturing and Testing Standards

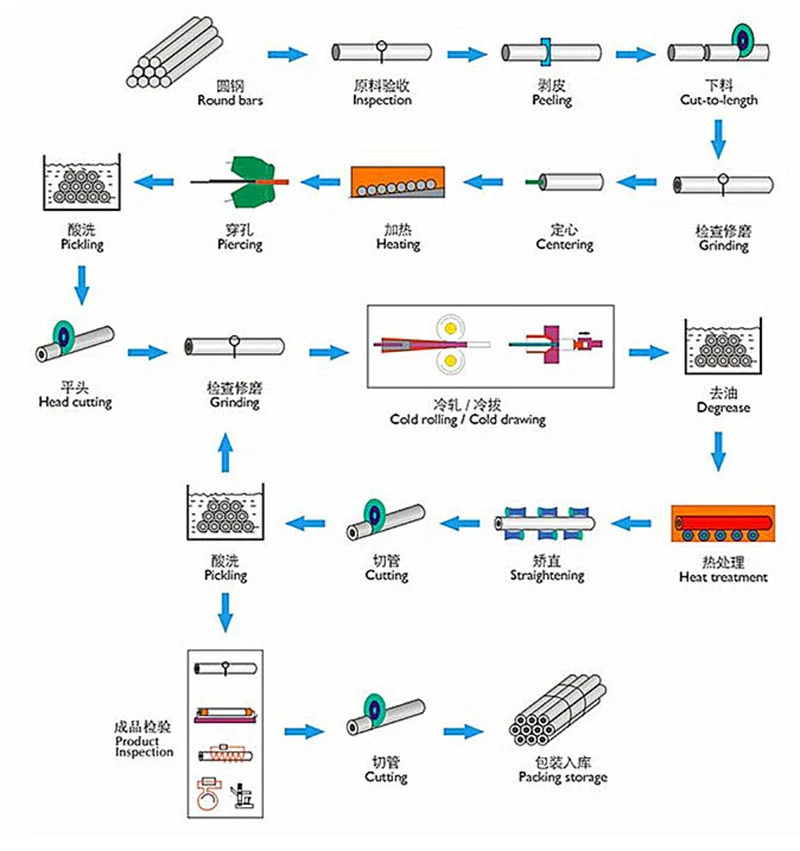

API line pipe specifications mandate rigorous manufacturing and testing processes to ensure quality and performance. Seamless pipes are produced through hot rolling or cold drawing, while welded pipes are manufactured using ERW or SAW techniques. The API 5L standard requires testing for:
- Chemical Composition: Ensures the material meets specified limits for carbon, sulfur, phosphorus, and other elements.
- Mechanical Properties: Tests for yield strength, tensile strength, and elongation to verify the pipe’s durability.
- Non-Destructive Testing: For PSL2 pipes, ultrasonic or radiographic testing detects internal defects.
- Hydrostatic Testing: Verifies the pipe’s ability to withstand specified pressure levels without leakage.
These stringent requirements ensure that pipes meet API line pipe specifications and perform reliably in demanding conditions.
Surface Treatments and Packaging
API line pipe specifications also cover surface treatments and packaging to protect pipes during transportation and storage. Common surface treatments include:
- Bare Pipes: Delivered without coating for applications where additional coatings are applied on-site.
- Lightly Oiled: Prevents rust during short-term storage.
- Painted Surfaces: Black, red, or yellow paint provides temporary corrosion protection.
- Anti-Corrosion Coatings: Zinc or epoxy coatings enhance durability in corrosive environments.

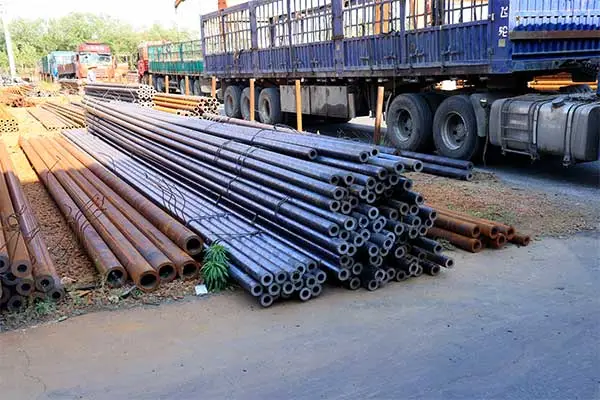

Packaging options include bundling for smaller diameters, loose packaging for larger pipes, and sealing both ends with plastic caps to prevent damage. Waterproof paper wrapping further protects pipes from moisture, ensuring they arrive in pristine condition.
Choosing the Right API Line Pipe
Selecting the appropriate pipe requires a thorough understanding of API line pipe specifications and project requirements. Key factors to consider include:
- Application: Determine whether the pipe will transport oil, gas, or water, as this affects grade and PSL selection.
- Environmental Conditions: Harsh environments, such as offshore or corrosive settings, may require PSL2 pipes with enhanced properties.
- Diameter and Wall Thickness: Match the pipe’s dimensions to the project’s pressure and flow requirements.
- End Connections: Choose between plain, beveled, or threaded ends based on installation needs.
Consulting with a reliable supplier ensures that the selected pipes meet API line pipe specifications and project demands.
Advantages of Using API 5L Line Pipes
Pipes manufactured to API line pipe specifications offer several benefits:
- High Strength and Durability: Suitable for high-pressure and high-temperature applications.
- Versatility: Available in various grades, sizes, and types to meet diverse project needs.
- Corrosion Resistance: Anti-corrosion coatings extend service life in challenging environments.
- Global Acceptance: API 5L is an internationally recognized standard, ensuring compatibility with global pipeline systems.
These advantages make API 5L pipes a preferred choice for critical infrastructure projects worldwide.
Conclusion
API line pipe specifications provide a robust framework for ensuring the quality, safety, and performance of pipelines used in oil, gas, and water transportation. By adhering to API 5L standards, suppliers deliver pipes that meet stringent requirements for strength, durability, and corrosion resistance. Whether you’re managing an onshore oil pipeline or an offshore gas project, understanding these specifications is crucial for selecting the right pipes. Shandong Zhongzheng specializes in providing high-quality seamless steel pipes to meet the diverse needs of various industries. Our products come in a range of sizes, grades, and specifications to suit different applications. For tailored solutions and expert guidance, contact us today to discuss your project requirements and explore our premium API 5L line pipes.
FAQ
What is the difference between PSL1 and PSL2 in API 5L?
PSL1 is the standard specification level with basic requirements, while PSL2 includes stricter standards for chemical composition, toughness, and testing, making it suitable for more demanding applications.
What grades are available under API line pipe specifications?
API 5L covers grades such as GR.A, GR.B, X42, X46, X52, X56, X60, X65, X70, and X80, each indicating different yield strengths.
Can API 5L pipes be used for water transportation?
Yes, carbon steel line pipes meeting API line pipe specifications are commonly used in water pipelines due to their durability and cost-effectiveness.
What are the common end types for API line pipes?
API line pipe specifications include plain ends (square cut, saw cut, or torch cut), beveled ends for welding, and threaded ends for specific applications.
